Freebord 5X

Assembly Instructions

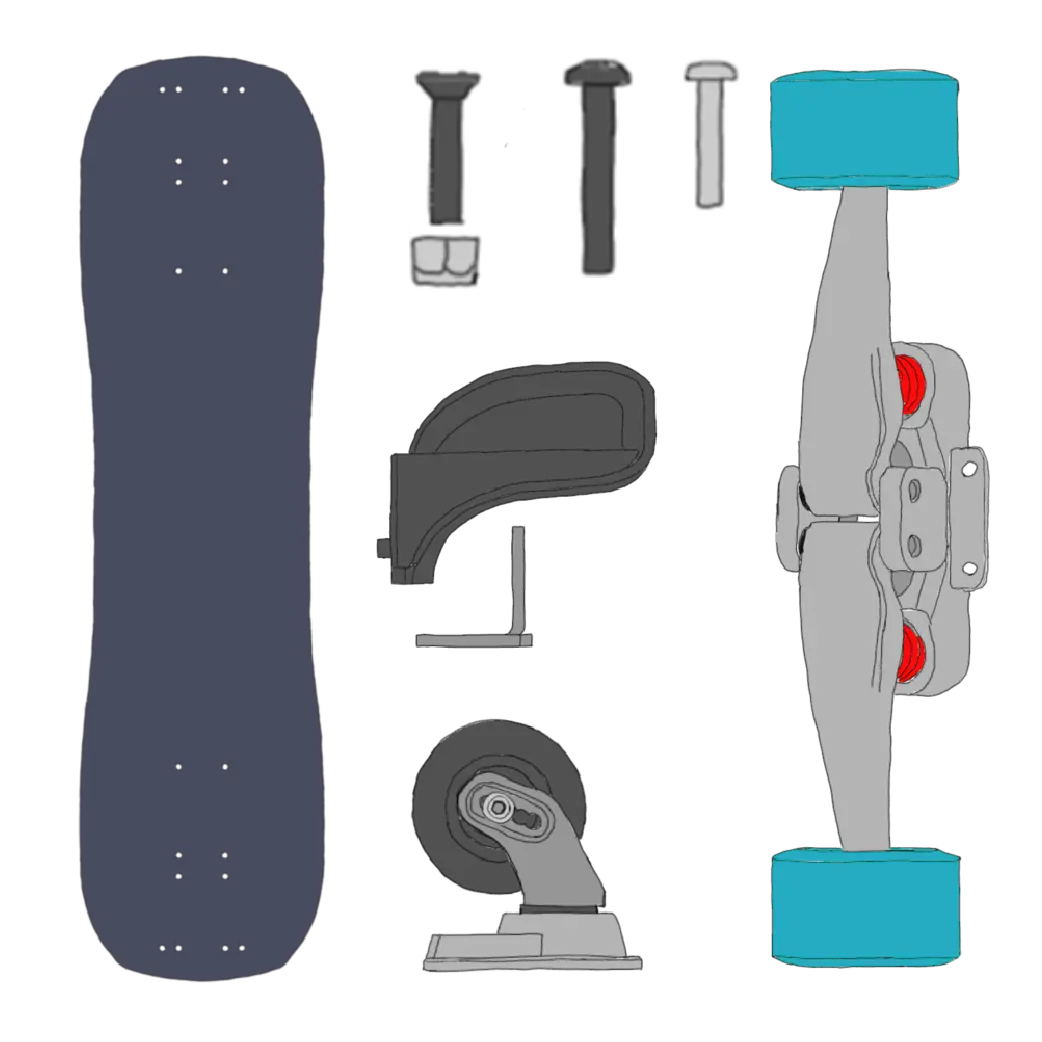

Step 1 - Your Board Includes

Deck

S2 Topper

Counter sunk mounting bolt

Round head mounting bolt

S2 height adjust screw

Mounting nut

S2 base

Caster

5-X Truck

Edge Wheel

Center Wheel

Make sure you have Everything

  • Deck x1
  • 5X Truck x2
  • Caster x2
  • S2 topper x2
  • S2 base X2
  • Counter sunk mounting bolt x16
  • Round head mounting bolt x4
  • Mounting nut x20
  • S2 height adjust screw x4
  • Edge Wheel x 4
  • Center Wheel x 2

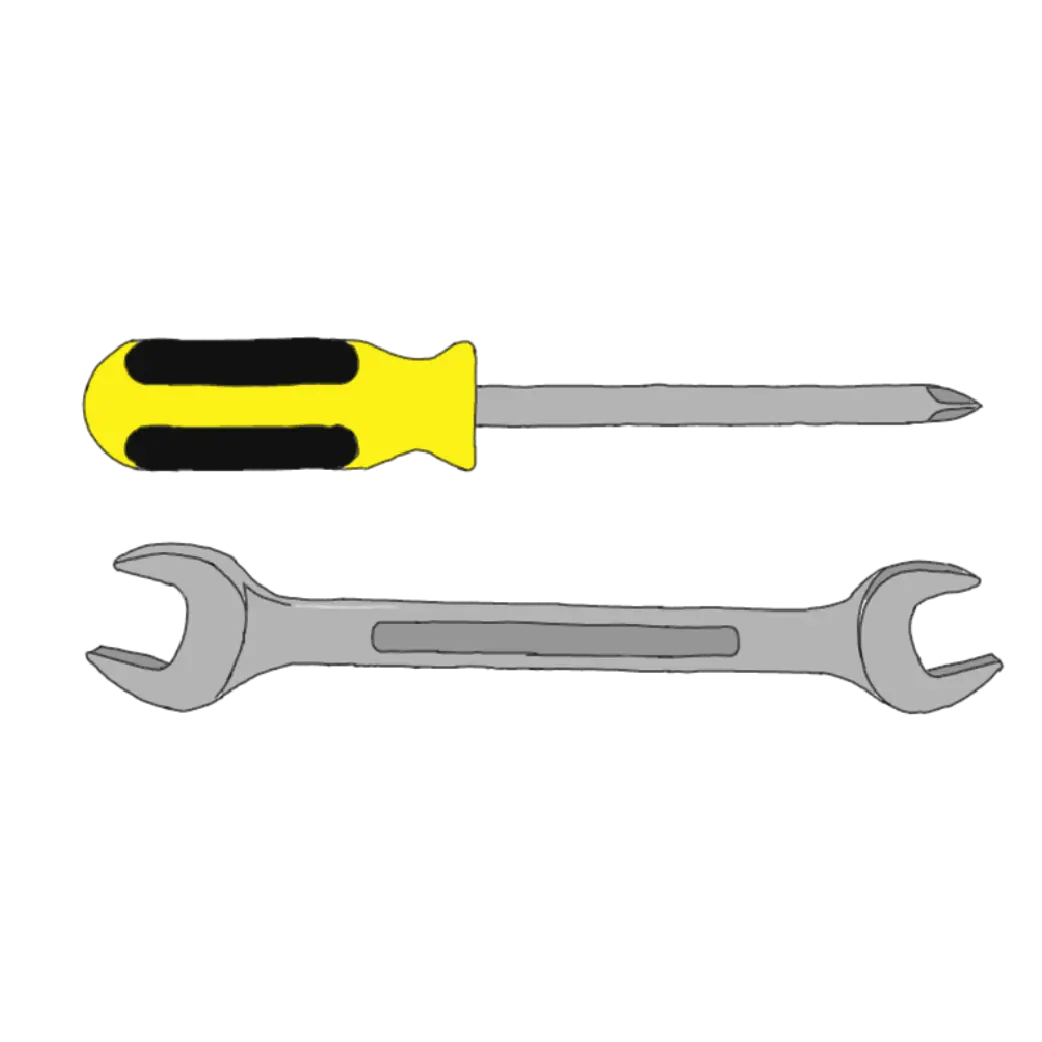

Step 2 - Tools

You are going to need

  • Philips screwdriver
  • 3/8” wrench -or- 10mm spanner

Step 3 - Poke Holes

Poke holes in the grip tape

  • Use your screw driver, mounting bolt, or something pokey to poke 8 holes in each end of the deck
  • You can skip the 2 holes (in each end) highlighted in red. You will not be using these holes.

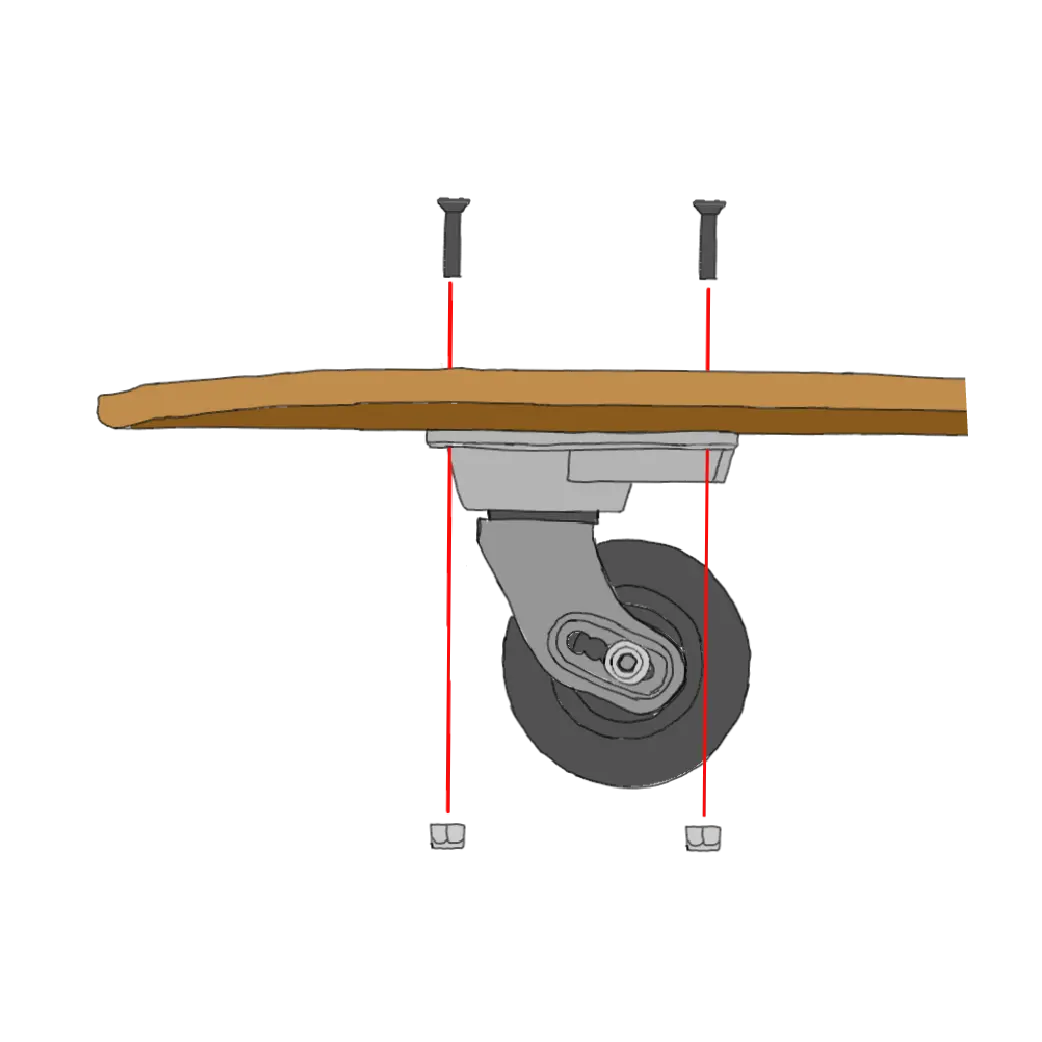

Step 4 - Casters

Mount your Casters

  • Use countersunk mounting bolts to attach your casters the deck
  • Get all 4 screws tight-ish before tightening the bolts all the way
  • Make sure the logos on the casters are both facing towards the center of the deck
  • Use your screw driver, mounting bolt, or something pokey to poke 8 holes in each end of the deck
  • You can skip the 2 holes (in each end) highlighted in red. You will not be using these holes.

*The bindings should not be assembled yet, only use the metal binding base.
If the topper is installed you wont be able to get the screw driver on the inside bolts.

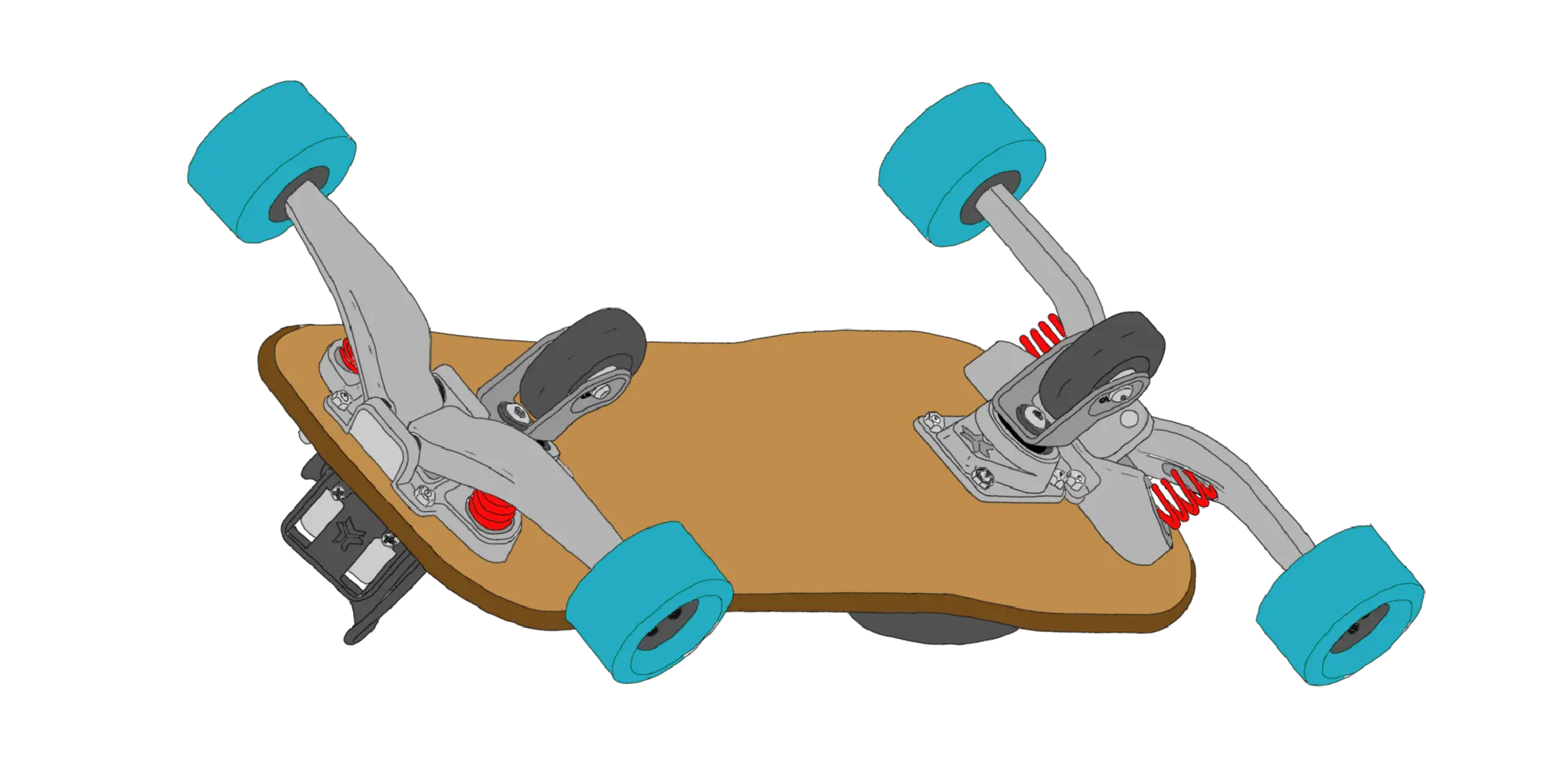

Step 5 - Trucks

Mount your Trucks

  • Use countersunk bolts in the holes towards the center of the deck
  • Use round head screws to go through the S2 binding base, deck, and 5-X truck
  • Get all 4 screws tight-ish before tightening the bolts all the way

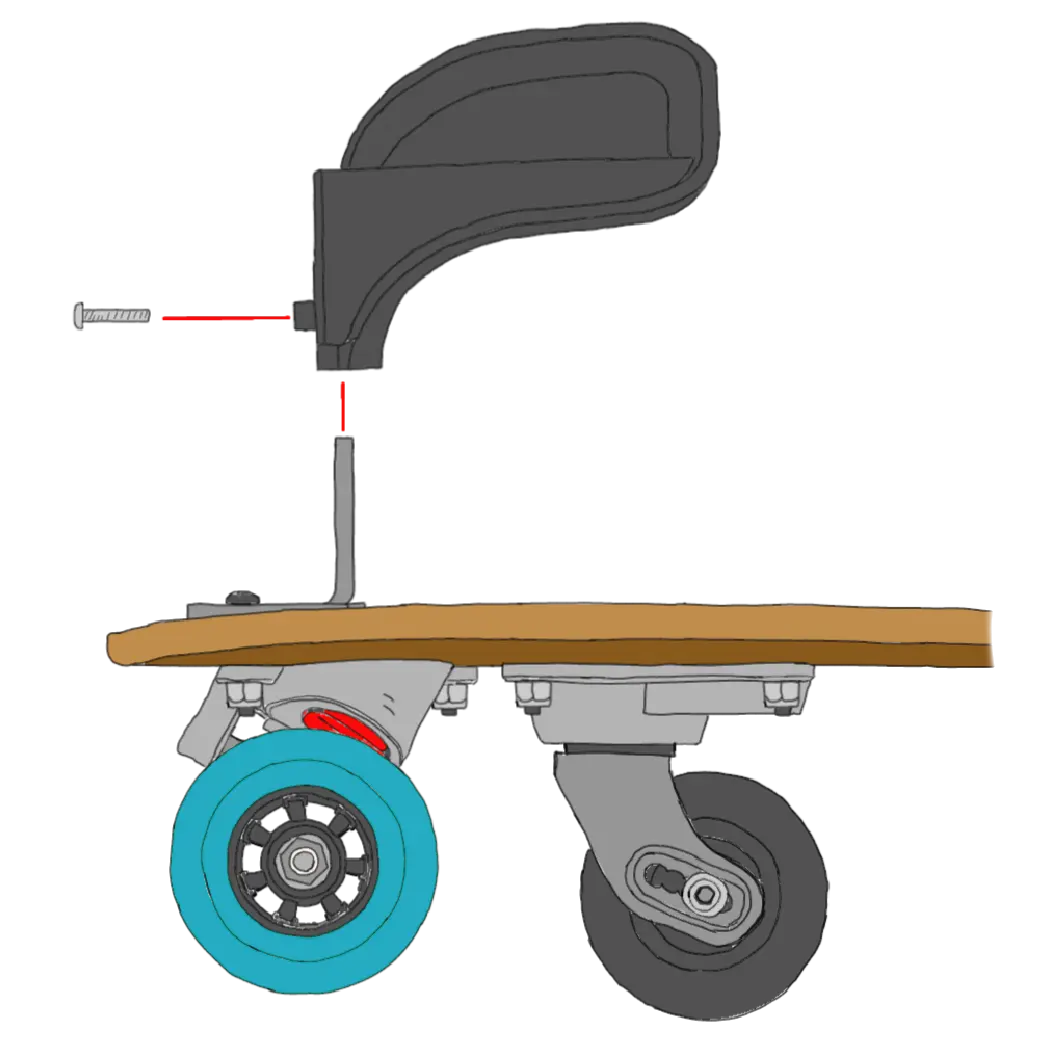

Step 6 - Bindings

Install the binding toppers

  • Add the plastic binding toppers to the binding baseplates using the slot in the bottom of the topper.
  • Use the small silver screws to set the height of the binding toppers.

*Don’t be the noob that misses the slot in the bottom of the topper. Attaching the topper to the side of the base will result in the screws immediately bending.

Step 7 - Pre-ride Check (every session)

Make sure your caster wheel is tightened, the bracket feels strong, and that the caster spins all the way around.

Check your edge wheel nuts for proper tightness.

Check to see if your kingpin faceplate is installed and the pins are properly retained.

Insure your bindings are properly assembled and have the height adjust screws installed.

Pull the hanger arm away from the deck to make sure your easy blocks are installed and the springs are properly secure.

Check to make sure all your mounting bolts are installed and tightened.
